Valve chests

Valve chests DIN-HNA

As a leading manufacturer of valves and fittings for industry and shipbuilding we are now also able to deliver valve chests.

Göpfert AG signed an agreement with company Hebold in Cuxhaven and took over the complete range of valve chests with immediate effect.

A great variety of different pattern combined with our own foundry and modern production facility in Weddingstedt allow Göpfert to deliver valve chests type DIN-HNA as well as in the usual OK version with VG flanges (Otto Kollmann valves)

• 2-piece up to 8-piece
• nominal diameter from DN 40 up to DN 150
• nominal pressure from PN 3 up to PN10
• stop valve or SDNR valve
• suction valve chest
• suction and discharge valve chest
• pressure valve chest
• pressure and discharge valve chest
• materials:
   - cast iron with inner parts made of gunmetal or stainless steel
   - nodular cast iron with inner parts made of gunmetal or stainless steel

More executions with different nominal diameters or pressures on request.

Our valve chests are suitable for fuel-oil systems and seawater systems.
The flanges at the inlet side and at the outlet side can be ordered in different sizes.

You can order our valve chests in following special designs:
• materials:
   - gunmetal (Rg 5, Rg 10, Gbz 10)
   - other materials on request
• flange connection acc. to DIN, ANSI, JIS
• possible combination of flanges
• with actuators (see picture with single-acting pneumatic actuator)

You are searching for furthermore designs, different materials, diameters, working pressures or temperature ranges ?

Please ask us !  We are pleased to help you.

Contact

Sales
Phone  +49 (0)481 903 0
Fax      +49 (0)481 903 290

email



Contactform

PDF download

... also available:

Valve chests:
suction delivery type
suction type
pressure discharge type
pressure type

many different designs are possible .... ask us !

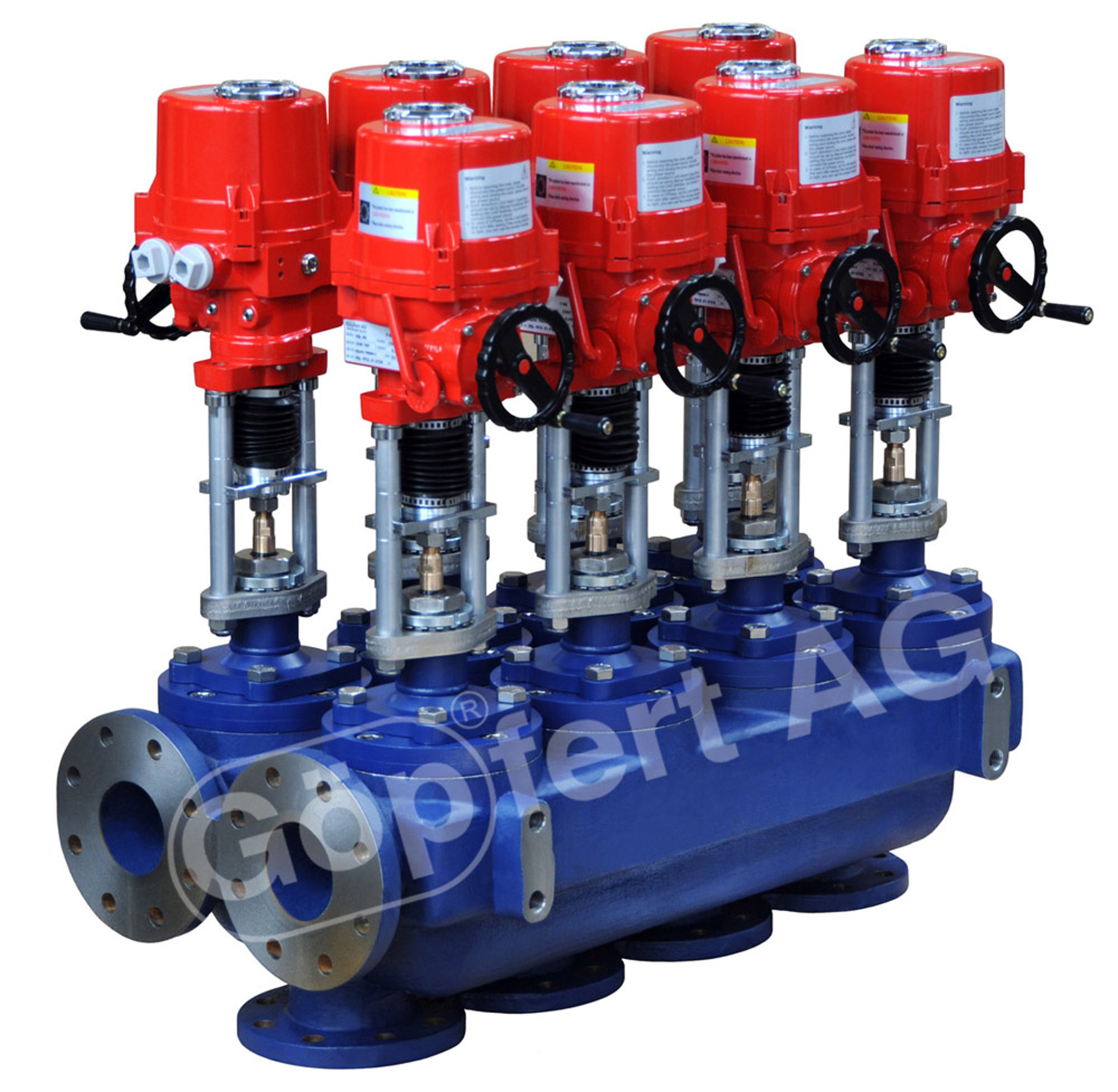

Valve chest suction-delivery type
4 section (8 valves)
with electrical linear actuator,
cut-out by limit switch,
position indicator,
and emergency hand operation by handwheel

many different designs are possible - please ask us !
