..... also available:

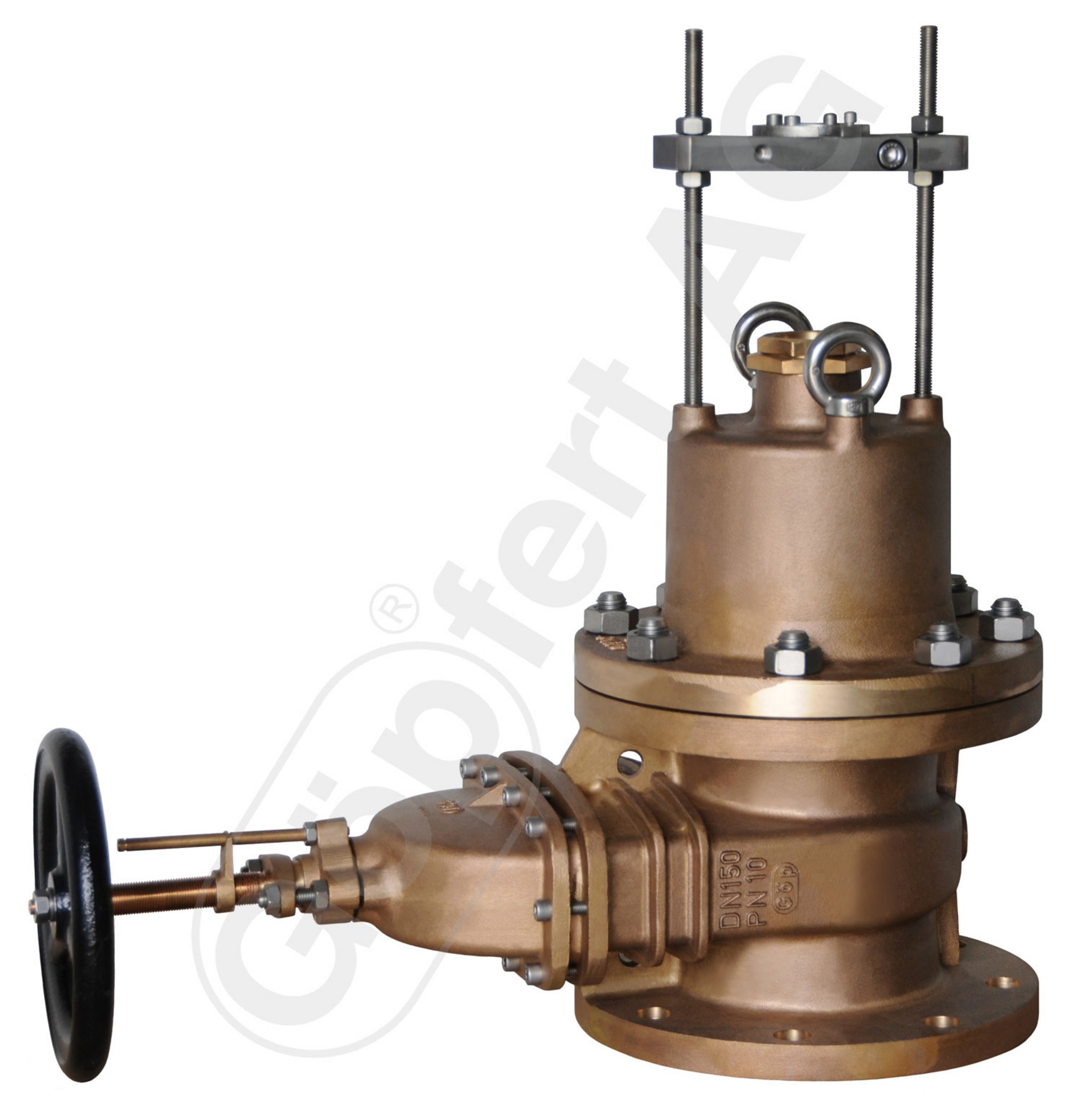

Gate valve, flanged DIN 3352 T2 PN10 DN 150

with full bore Ø = 150 mm

with bonnet for sensor with pipe leading

with indicator

with NBR-O-ring sealing
screws material stainless steel

one flange PN16
other flange PN16 with threaded holes


Material: Rg 5 / CuSn 6 / Rg 5



Many further designs are possible ....  ask us !

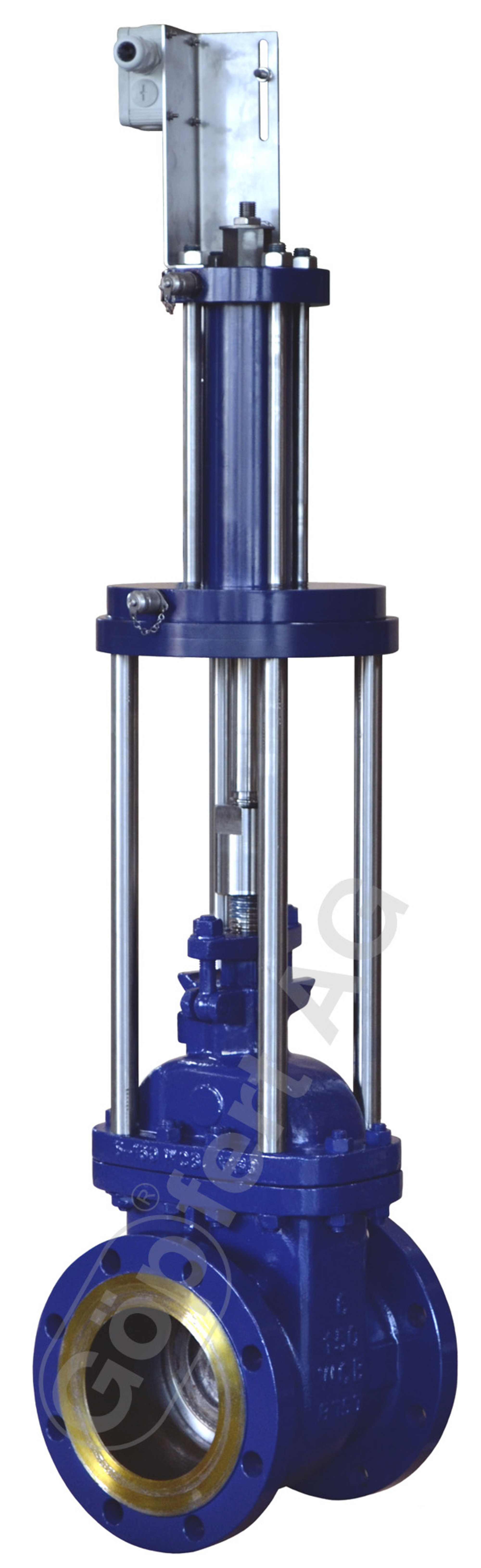

Gate valve ANSI Class 150 DN 150
face to face length acc. to ANSI B16.10
flanges ANSI 150 lbs rf dim. and drilled

with hydraulic linear actuator SHLAG/DA 2020 150/162 and proximity switches


material: cast steel/stainless steel



Many further designs are possible ....  ask us !

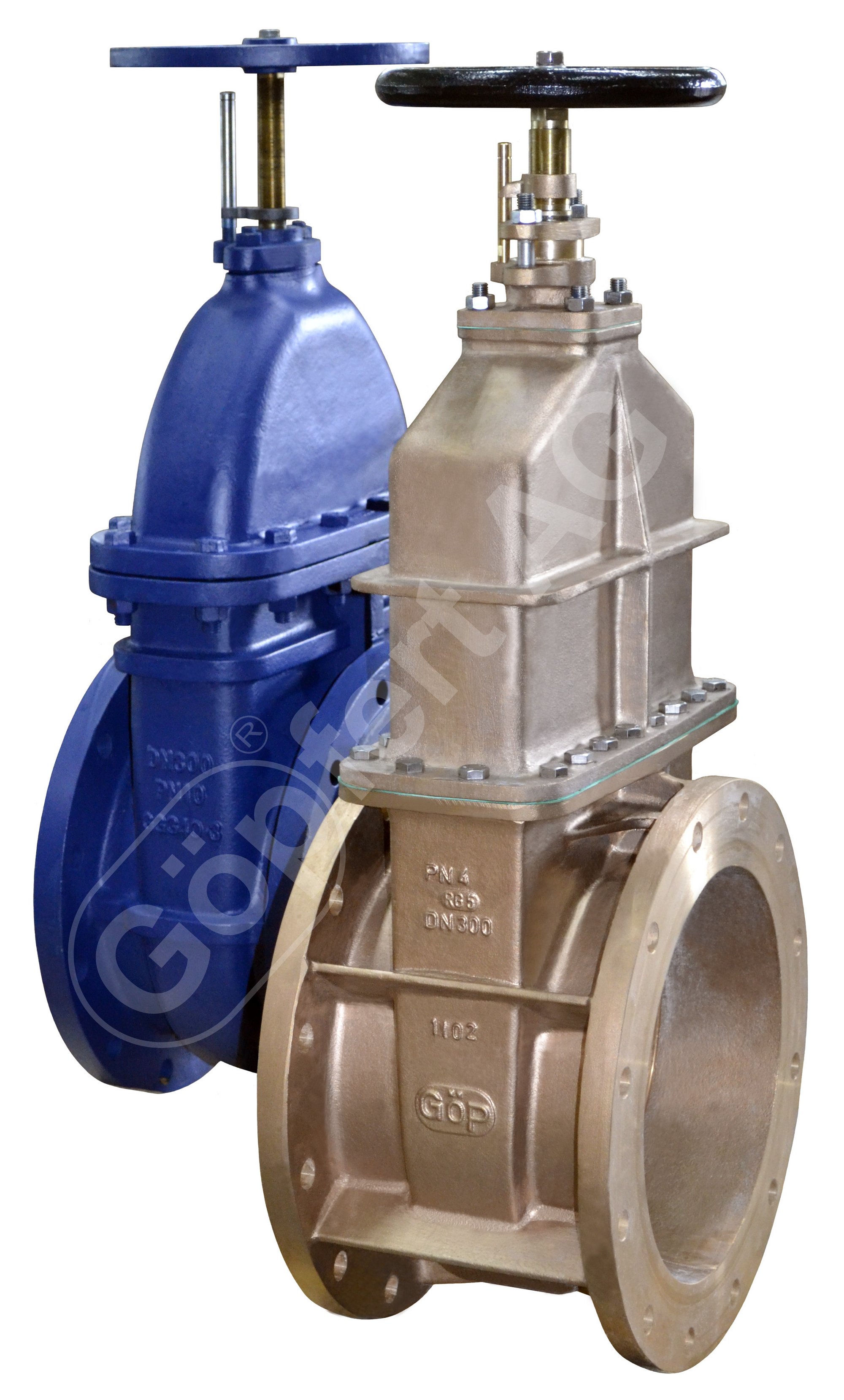

Gate valves

Gate valves are used for shut up the complete flow of medium in a pipeline. They are not suitable for regulation of flows.



Our gate valves are designed with non rising stem, with indicator and are metallic sealed.



As a manufacturer we are able to produce our valves in many various designs and executions and for many various range of application.

Particularly suitable for extreme working conditions in strong corrosive areas in seawater or offshore plants are our gate valves made of copper-aluminium-alloys (CuAl10Ni).



Additonal our gate valves are suitable for speed-log-systems (see picture right)

For this application the bore are full drilled and the valves get a bonnet with pipe leading.



Product features:

• with flanges

• with screwed ends

• with indicator

• nominal diameter from DN 15 up to DN 700

• nominal pressure from PN16

• temperature range up to 300°C

• materials:

   gunmetal Rg 5, Rg 10, Gbz 10, CuAl10Ni, nodular cast iron, cast steel

• acc. to DIN 3352 T2 (with flanges)

• acc. to DIN 3352 T12 (with screwed ends)

• acc. to BGV 401422 / BGV 401522

• acc. to DIN 86259 very light serie

• acc. to DIN 86720

• acc. to VG 85060



Our gate valves are also available in following designs:

• with limit switches

• with drain plug

• with various flange dimensions

• with various thread

• with hydraulic actuator, also with

   electro-hydraulic Local-Power-Unit (LPU)

• with electrical actuator

• with  mechanical remote control (z.B.  Opens external link in new windowchain wheel)

• with O-ring-sealing at the stem for not vertical installation



You are searching for different designs, materials, nominal diameters, nominal working pressure or temperature ranges ?



Call us ! We are pleased to help you in any questions about valves and fittings !
