Butterfly valves double flanged type

Butterfly valves double flanged type

eccentric and double eccentric design

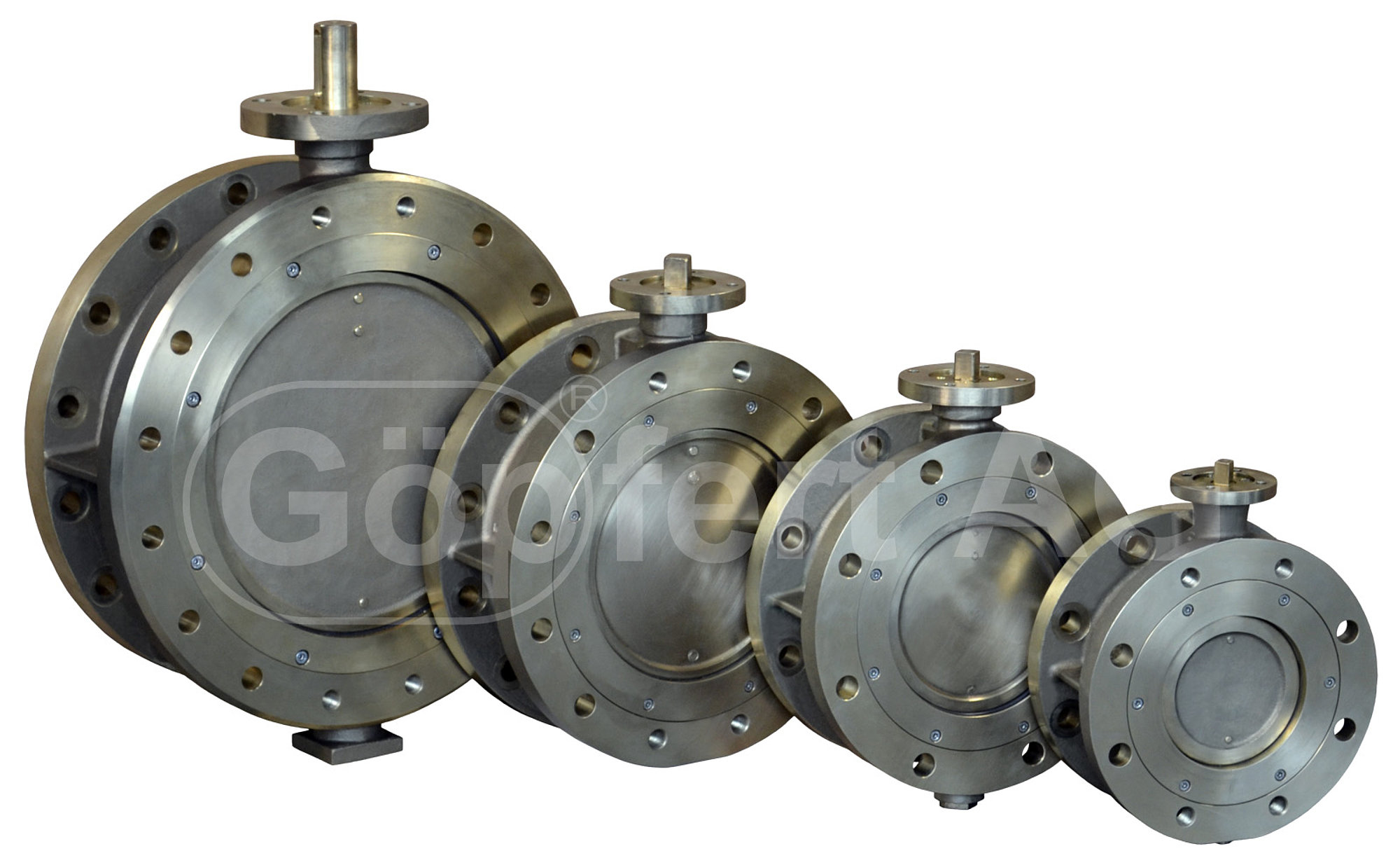

Our soft seated double flanged butterfly valves made of aluminium-bronce are available for extreme working conditions in strong corrosive areas in seawater and offshore plants.
Less erosion and eine high lifetime gain our butterfly valves double-flanged type throught their material and the displaced pivot point of the disc. Through the eccentric resp. double-eccentric design the friction and the mechanical operational demands of the sealing ring will decrease.

A further advantage of our butterfly valves double-flanged type are their small torque.
Due to this fact it is possible to use small acutators and save space and costs.

Our double-flanged butterfly valves are shock approved for the navy shipbuilding.

Advantages our butterfly valves double flanged type:
• less friction at the seat
• less erosion
• higher lifetime
• reduced costs for maintenance
• less default risk

Product features:
• eccentric and double eccentric design
• nominal diameter DN 50 - DN 400
• nominal pressure PN16
• flanges PN16 / PN10 drilled
• soft seated
• sealing rings made of solid rubber and with steel core
• replaceable sealing ring

Furthermore our butterfly valves are available with following actuators for remote operation:
• pneumatic actuators double acting or spring return
• hydraulic actuators, also with electro-hydraulic local-power-unit (LPU)
• electric actuators

You are searching for furthermore designs, different materials, diameters, working pressures or temperature ranges ?

Please ask us !  We are pleased to help you.


Phone  +49 (0)481 903 0
Fax      +49 (0)481 903 290




PDF download

... also available:

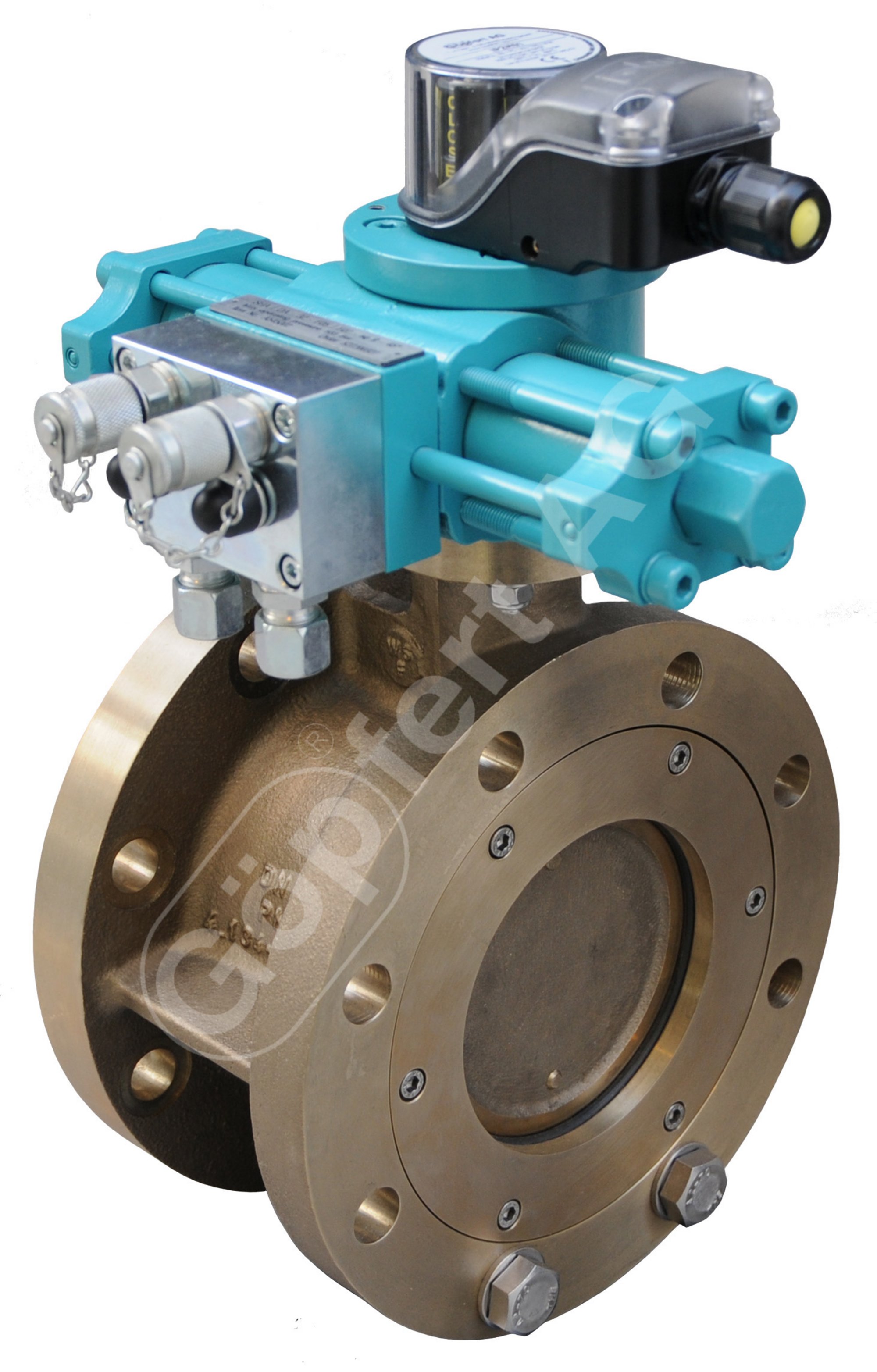

Butterfly valve double flanged type
eccentric PN16 DN 150
with hydraulic actuator
sealing ring: FKM with steel core
with top flange ISO-5211
Flanges PN16
Material: CuAl10 Ni / CuAl10 Ni

further designs are possible - ask us !
